Einführung von hsbDesign 29 für Revit® und AutoCAD®

The world of offsite timber construction is constantly evolving, demanding greater speed, precision, and seamless integration between design and manufacturing. That’s why today, we are thrilled to announce a major leap forward in meeting these demands: the official release of hsbDesign 29 for Revit® and AutoCAD®!

This latest version represents a significant milestone, packed with revolutionary enhancements designed to simplify complex detailing, ensure consistent production data, and eliminate time-consuming, repetitive design tasks. We understand that compatibility and efficiency are paramount, which is why hsbDesign 29 is fully compatible with both Revit® 2026 and AutoCAD® 2026. This update focuses on delivering smarter workflows, particularly through easier cross-platform interoperability on Revit® and the introduction of a powerful new wall Framing Engine on AutoCAD®.

Leading companies in the offsite timber industry already trust hsbcad. With hsbDesign 29, we are empowering designers and manufacturers to detail and frame seamlessly within the familiar Autodesk environments, allowing you to unlock your model’s full potential and bring it to life. Let’s dive into what hsbDesign has to offer.

What exactly is hsbDesign?

For those looking to boost designer efficiency in offsite timber construction, hsbDesign is hsbcad’s industry-leading solution for framing and detailing. It is not a standalone software, but rather a robust, integrated platform that works directly within your existing professional design tools: Autodesk Revit® and Autodesk AutoCAD® Architecture.

hsbDesign allows you to take a design model and automatically generate detailed, production-ready framing elements for walls, floors, and roofs. This process includes everything needed for manufacturing, from generating precise geometry and material lists to creating shop drawings and clean CNC machine outputs.

hsbDesign takes you beyond standard BIM workflows into intelligent, offsite and timber-specific design logic. Here’s what that means:

1.  Seamless Integration: Everything happens within the established Revit® or AutoCAD® environment. No extra apps, no errors, and faster onboarding.

2.  Automation: Repetitive tasks are automated through predefined rules and styles.

3. Accuracy: Detailed models are connected directly to manufacturing processes (through tools like hsbView and hsbMake), ensuring that communication flows consistently and accurately from the initial design phase to the factory floor.

With hsbDesign 29, we have amplified this core mission, focusing on making the connection between design and manufacturing smoother, faster, and more controlled than ever before.

New Features in hsbDesign 29 for Revit®

hsbDesign 29 for Revit® is built to handle the complexities of modern timber construction, ensuring that even the most elaborate designs can be prepared for production with speed and precision. Fully compatible with Revit® 2026, this release focuses heavily on smarter imports, enhanced framing control, and greater automation. Our goal with this version was to provide smoother cross-platform interoperability, quicker shop drawings, faster framing, cleaner CNC outputs, and highly consistent production data.

Enhanced Interoperability: IFC Importer & ModelX Importer

IFC Import on hsbDesign for Revit®

Cross-platform collaboration, which is often a bottleneck in large projects, has been significantly streamlined. The enhanced IFC Importer now seamlessly maps IFC elements directly into native Revit elements, critically enriching them with hsbcad data. This includes support for complex items like engineered trusses, walls, floors, roofs, and mass elements, ensuring smooth data exchange and better collaboration with external partners.

ModelX Import on hsbDesign for Revit®

Similarly, the ModelX Importer has been upgraded. This importer, which mirrors the IFC import capabilities, introduces a new interface for validations and extensions. Two new extensions are particularly noteworthy, allowing users to map ModelX entities into Revit families and import ModelX properties directly as Revit parameters. This results in smoother integration, increased design flexibility, and a faster model transfer from hsbDesign for AutoCAD and other IFC exports, resulting in fewer errors.

Precision Detailing: Three-wall Connection

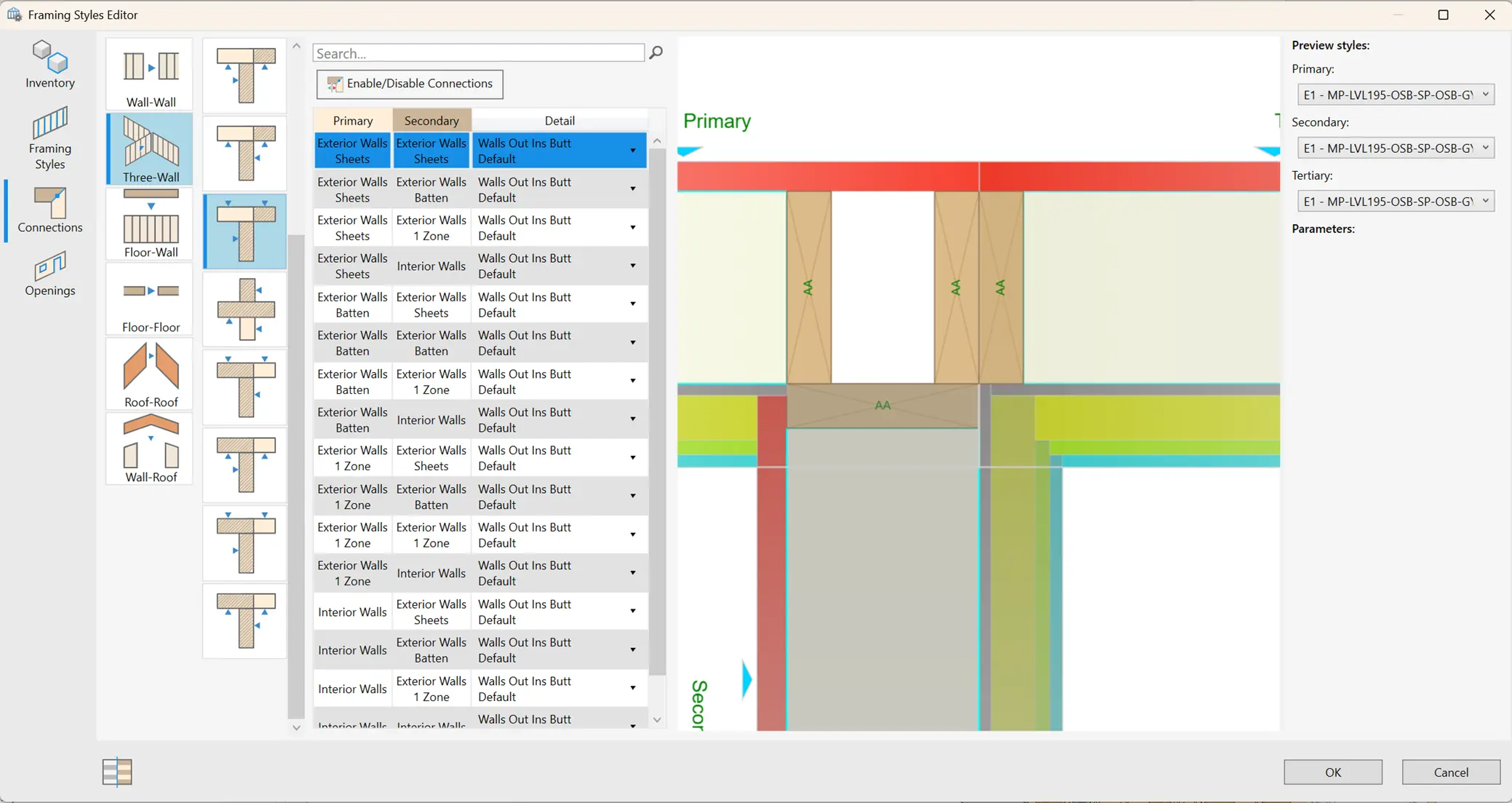

Three-wall Connection on hsbDesign for Revit®

Dealing with complex wall junctions often requires manual adjustments, but the new Three-wall Connection feature makes handling these intricate intersections effortless. This innovative feature allows users to create custom details specifically designed to resolve intersections between three walls. By defining these details, complex wall connections can be modeled with precision, ensuring both design accuracy and constructability without hours of laborious manual detailing.

Upgraded Framing Styles Editor

Framing Styles Editor on hsbDesign for Revit®

The Framing Styles Editor has been upgraded to enhance configuration speed and minimize setup errors. Users can now define default inventory items and codes, assign aliases per framing group, and set default material values, all while retaining the flexibility to apply overrides per group.

Automatic Assemblies

Automatic Assemblies on hsbDesign for Revit®

Automatically generate assemblies from Revit elements that share the same hsbcad module definition. Modules can be assigned or created using the Module Extension, providing a structured and consistent approach to project organization. This intelligent automation not only improves model clarity but also accelerates production output, ensuring that fabrication-ready assemblies are generated faster and more reliably.

Comments Tool

Comments Tool on hsbDesign for Revit®

The Comments Tool ensures project communication and production notes remain perfectly aligned. Users can now export Revit text, regions, and hidden comments straight to hsbcad shop drawings, hsbView, or hsbMake. This keeps everyone aligned, from designers to factory operators, throughout every stage of the project.

Expanded Dynamo Nodes

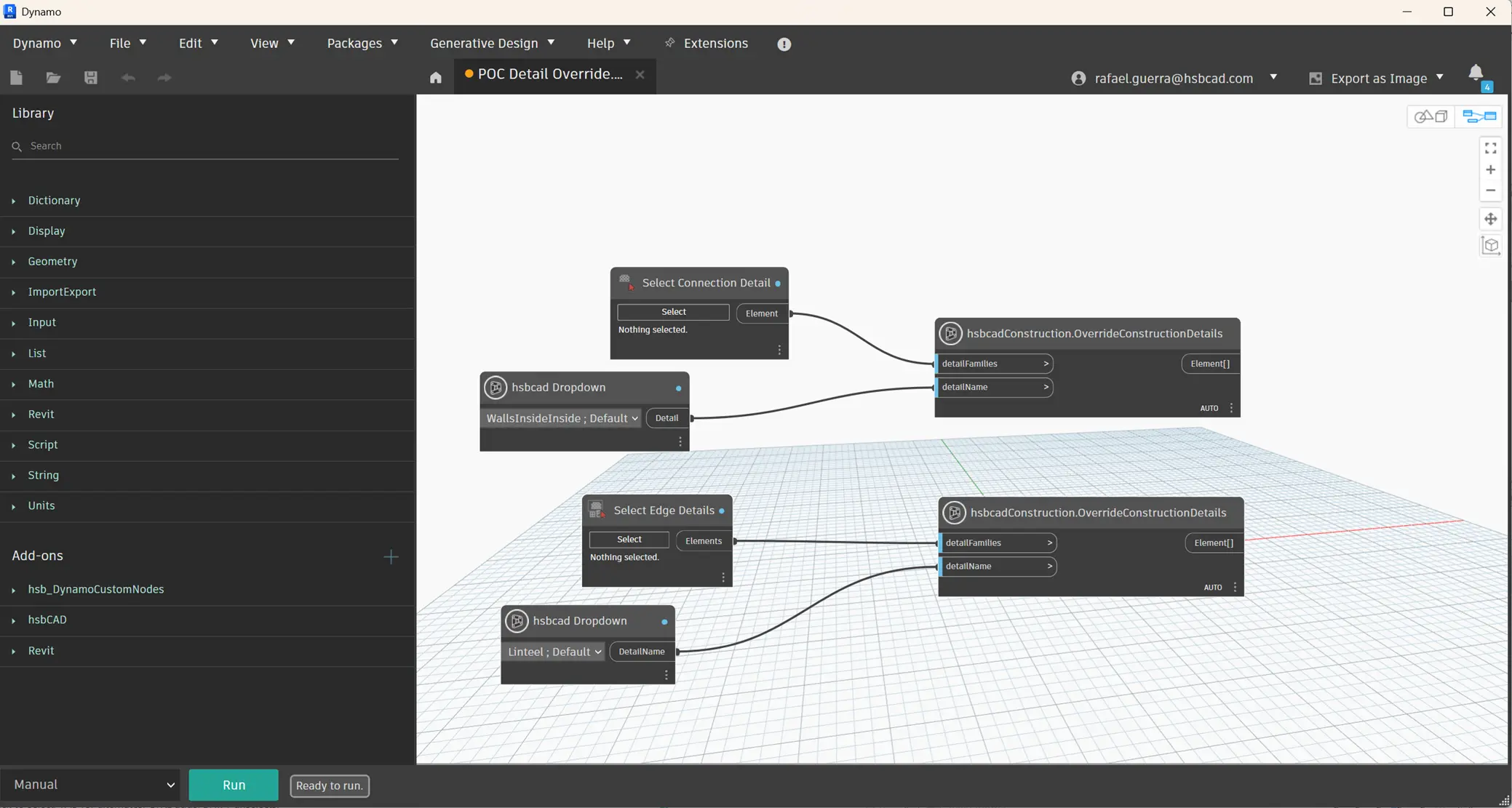

Dynamo Nodes on hsbDesign for Revit®

For users looking to achieve deeper process automation, new and extended hsbDynamo nodes are available. These include dropdown nodes for easier data collection, helping users streamline repetitive framing and data processing tasks.

These are just a few of the highlighted features and improvements included in hsbDesign 29 for Revit®. Many other updates, fixes, and enhancements, such as Automatic Assemblies, Item Container Management, and the Free Profile Tool, have been implemented to deliver a more polished and efficient user experience. To see the complete list of new features and detailed descriptions, we encourage you to check out the official release notes on hsbcad.academy.

New Features in hsbDesign 29 for AutoCAD®

hsbDesign 29 for AutoCAD® brings the same commitment to cutting repetitive tasks and enhancing precision to the familiar AutoCAD® environment. Fully supporting AutoCAD® 2026, this release includes fundamental changes that boost design flexibility and operational consistency.

New Wall Framing Engine on AutoCAD®: Framing Styles Editor

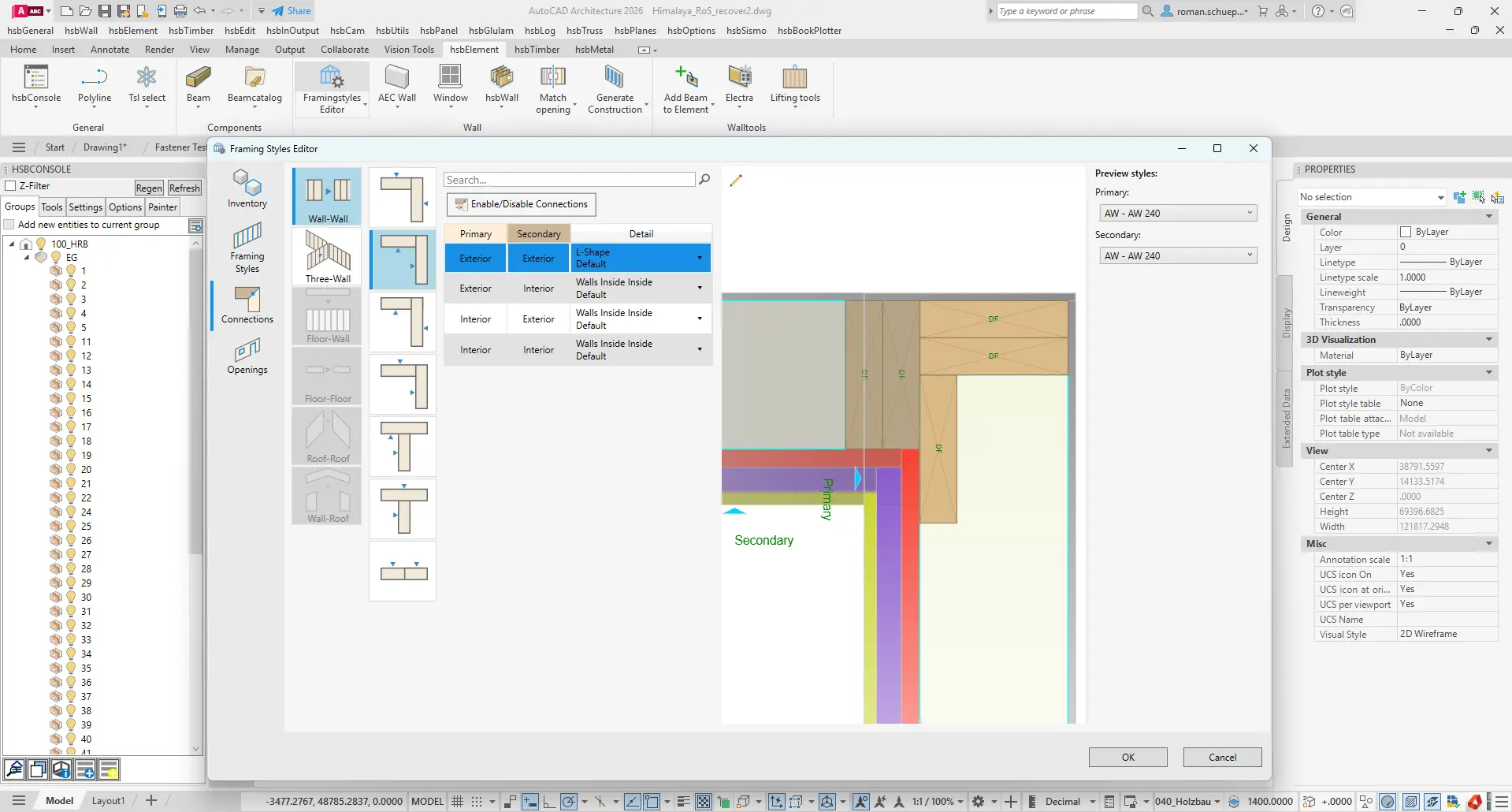

Framing Styles Editor on hsbDesign for AutoCAD®

The biggest highlight for AutoCAD® users is the introduction of the powerful new Wall Framing Engine, the “Framing Styles Editor”, now fully integrated into AutoCAD Architecture. If you are familiar with it on Revit®, you can now bring that powerful framing control to your wall framing projects within AutoCAD. This integration gives users a more intuitive interface to define, manage, and reuse framing logic and detail components.

Furthermore, work is already underway to extend this unified framing engine to include roofs and floors, promising a single, consistent framing solution for your entire model soon.

Persist Technology

Design flexibility receives a major improvement with the arrival of Persist Technology in AutoCAD®. This new capability means that any edits you make, whether copying, moving, editing, or deleting individual beams or sheets within a wall element, will remain intact, even after the wall is regenerated. This update reduces repetitive manual work and rework, saving design time.

Three-Wall Connection

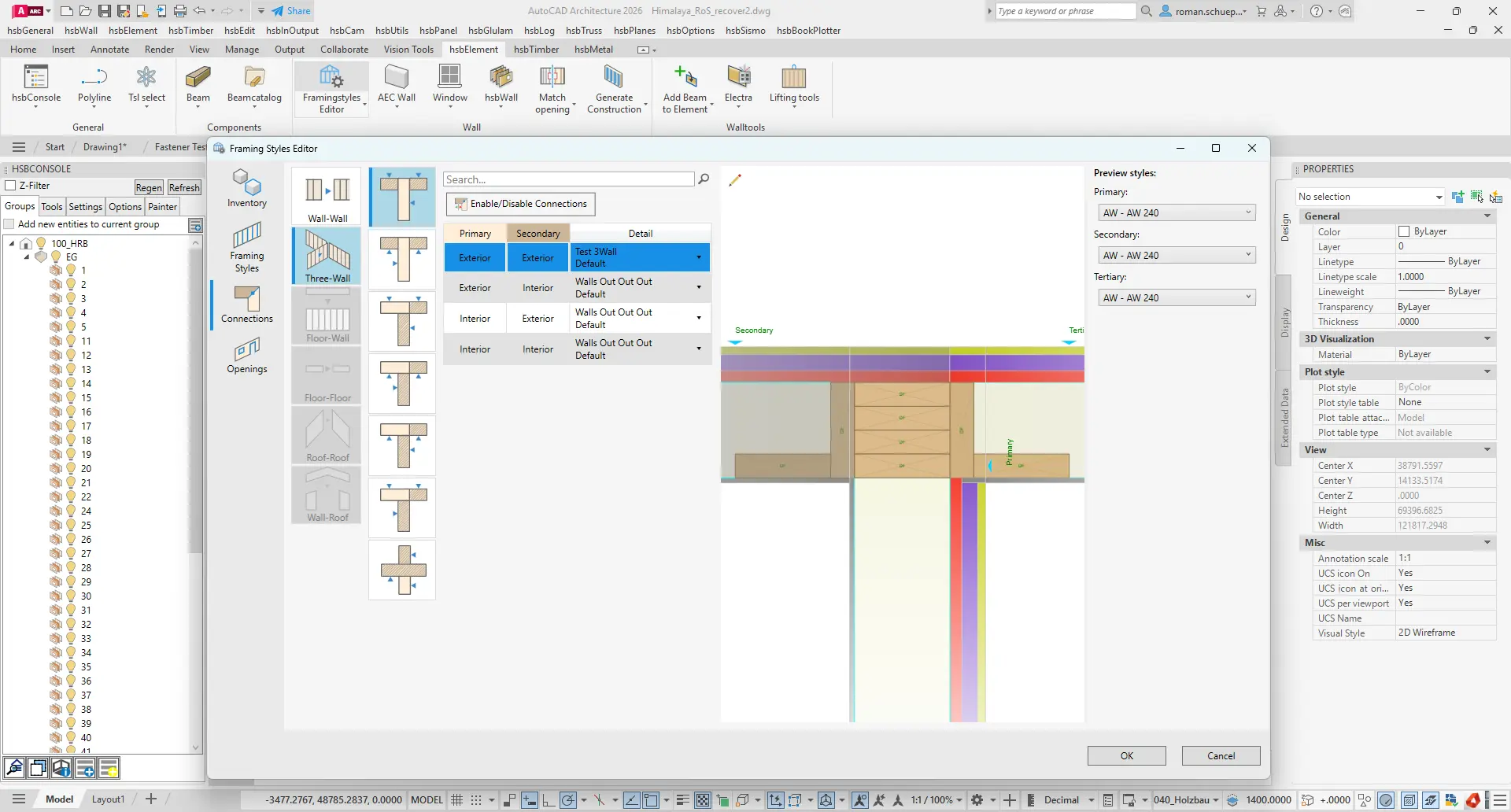

Three-Wall Connection on hsbDesign for AutoCAD®

For the first time, users can create three-wall timber frame connections directly within the Framing Styles Editor. This allows complex corner and junction details to be defined parametrically and consistently without manual adjustments.

Hilti P2P Connector

Hilti P2P Connector on hsbDesign for AutoCAD®

A new Hilti P2P Connector has been added, enabling tighter integration with Hilti tools and workflows.

Enhanced Fasteners and Components

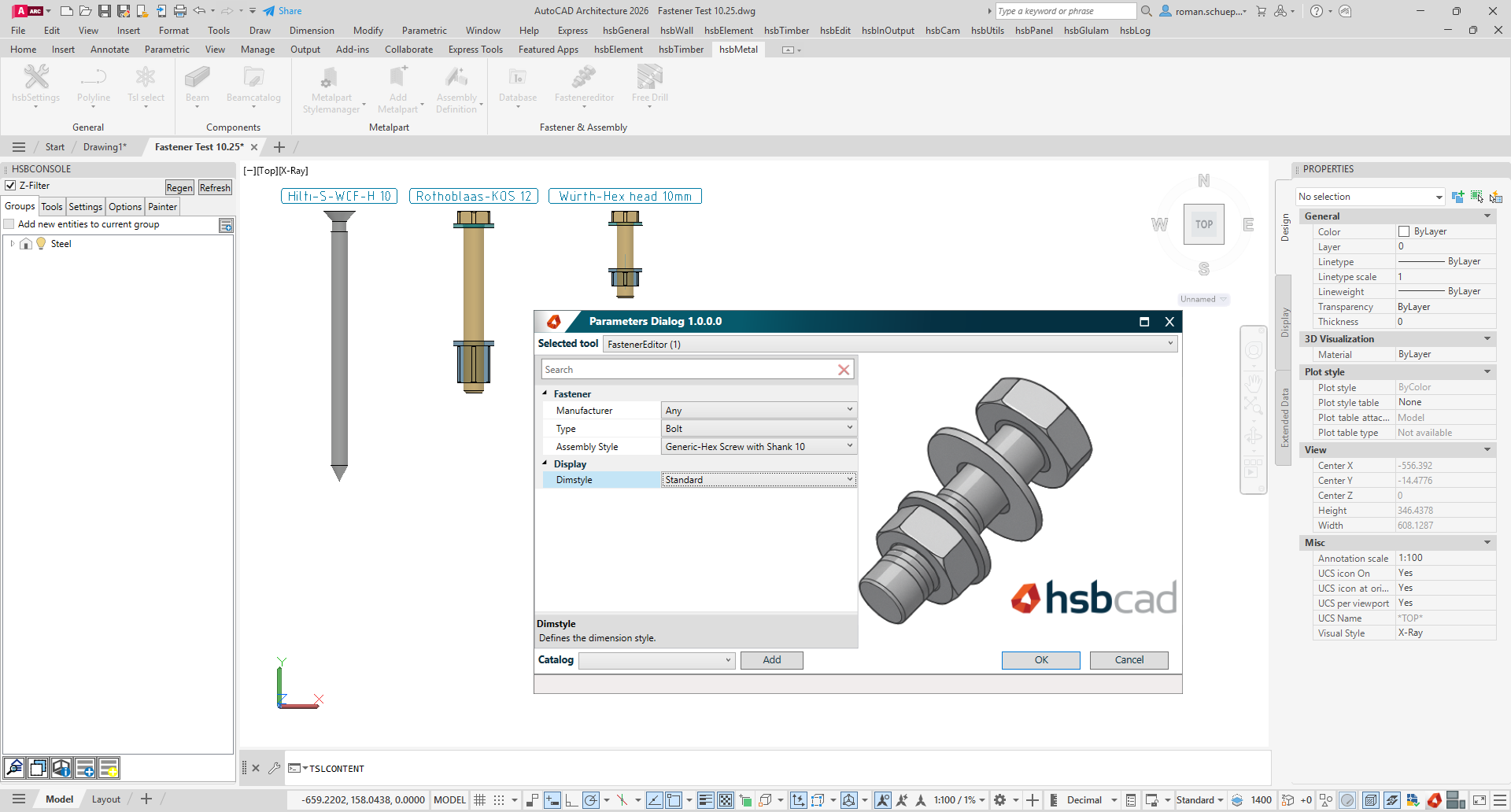

Fasteners and Components on hsbDesign for AutoCAD®

Handling fasteners and components is now smoother and more reliable. The improved database handling for fasteners results in smoother imports and better consistency. The default fastener database has been enriched to include the latest content from popular industry manufacturers, providing users with a richer set of predefined options right from the start.

To further customize workflows, the new TSL “FastenerEditor” allows users to create their own custom fastener assemblies and save them directly into the “StyleManager”. This ensures that custom assemblies can be selected and applied consistently across framing logic via TSLs like `simplefastener` and `drilldistribution`.

While these features significantly enhance core workflows, they represent only a selection of the updates in hsbDesign 29 for AutoCAD®. Version 29 also brings numerous refinements, bug fixes, and behind-the-scenes updates to boost stability and performance, which you can review in the official release notes at hsbcad.academy.

Test hsbDesign 29 today!

hsbDesign 29 has arrived with exciting new features designed to save you time, eliminate repetitive work, and foster smarter collaboration, all while ensuring full compatibility with the latest versions of Revit® and AutoCAD®.

If you are already a valued hsbcad customer, you can enjoy these new capabilities right away! Upgrading to Version 29 will give you instant access to all these new functionalities. You can initiate your upgrade by visiting myhsbcad.com.

If you are new to hsbDesign and interested in discovering how these advanced features can be applied directly to your specific timber framing workflows, we would love to show you. Contact us for a quick demo and see your model's full potential come to life!
